JBL Tune 500bt Speakers Removal

Written By: Matthew
  • Comments: 1
JBL Tune 500bt Speakers Removal

Difficulty

Very easy

Steps

4

Time Required

15 minutes

Introduction

This is a full teardown of the JBL Tune 500BT headphones, made by a young folk of the iFixit community.

  1. hAYVmewYMEJolSMw
    hAYVmewYMEJolSMw
    guxyDuuyYVWPVMF1

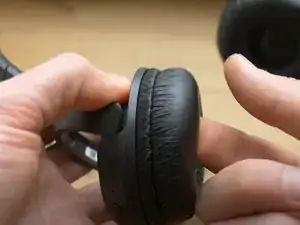

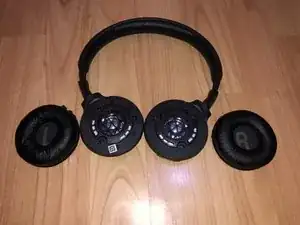

    • As you can see, I went ahead and already removed them. Doing so is really easy.

    • Put your finger behinde de foam and pull it gentle

    Then how to repair it

    Mahmoud Ahmed Saleh -

  2. XG5CrqQpATcDlWZF
    XG5CrqQpATcDlWZF
    1sAjF5CSYa5rNYxG

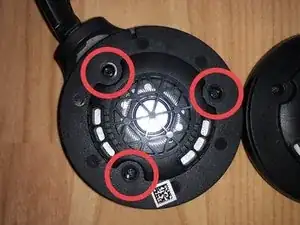

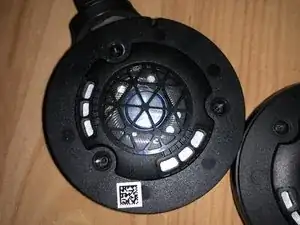

    • Let’s start with the left earpiece. Remove the three Philips screws with your #00 Philips screwdriver.

  3. 2KJIeeKCe36OIlPY

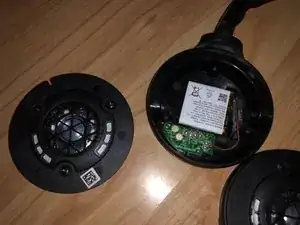

    • Gently remove the speaker. Doing this is very easy.

    • Repeat all the things I did for the left speaker for the right speaker.
