Roborock Q Revo: Teardown

Written By: DegenFixer
Published: 28/09/24
  • Comments: 1

Roborock Q Revo: Teardown

Published: 28/09/24

Teardown

Introduction

This is just a general teardown guide for the robotic vacuum cleaner Roborock Q Revo.

This only covers the robotic vacuum cleaner, and not the dock as well.

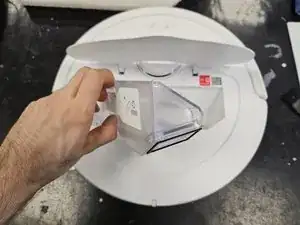

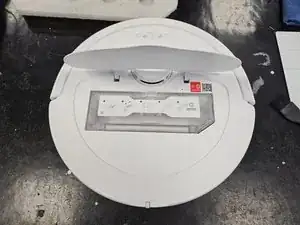

  1. iJ2otAoPrZQtlJPu
    iJ2otAoPrZQtlJPu
    VUo5V5YsqYQQp1yG
    xrLYNQj1jHfPDeIx

    • Open the back.

    • Remove the dustbin.

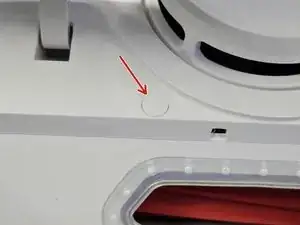

  2. tY6GHZFAeTWBRwUW
    tY6GHZFAeTWBRwUW
    XekanFXykDwLWcRB
    MHDcqSOAw2teKeAL

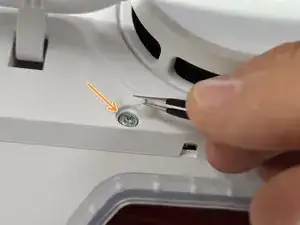

    • This rubber cap has a layer of adhesive and is stuck to the screw. The adhesive doesn't hold it in place firmly.

    • Remove the cap, then save it somewhere. It's purely cosmetic, so don't worry too much if you do lose it.

    • Once you remove the cap, remove the screw using a PH2 screwdriver.

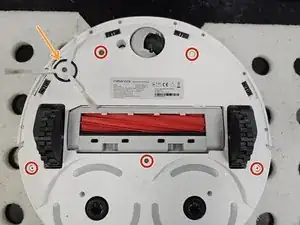

  3. cHN1IAkONyMZxUNI

    • Flip it over.

    • I use some padding underneath to prevent it sitting solely on the LDS cage.

    • Remove the side brush using a PH2 screwdriver.

    • Remove the marked screws using a PH2 screwdriver.

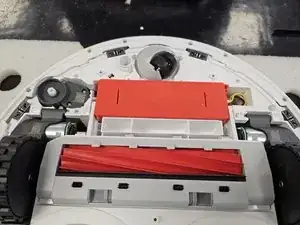

  4. HEBrMrqiSeSxgQwF
    HEBrMrqiSeSxgQwF
    Cc1lNS3oSFxf5VSG
    Mx1cyUbXFPAarPP1

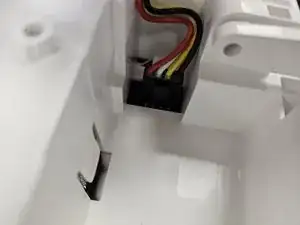

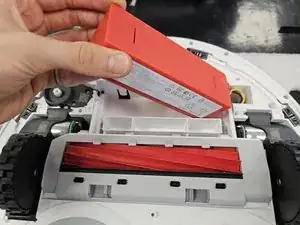

    • Remove the battery by lifting the left side until you can reach the connector, then disconnecting the connector by squeezing it's release tab.

    • Do not just yank the battery out. You will tear the connector off the motherboard.

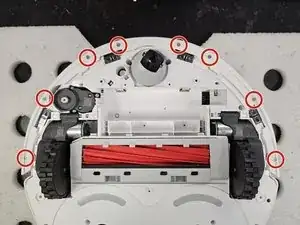

  5. cERGgSvFXtX5taNT
    cERGgSvFXtX5taNT
    pV1hNDJ2NCXGwlUQ

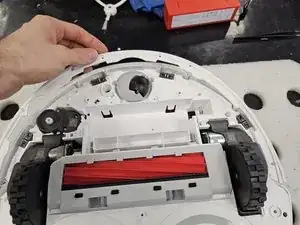

    • Remove the screws using a PH1 screwdriver.

    • Lift the bumper's lid off.

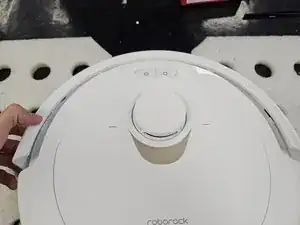

  6. SvojCBPauCNh1sgH
    SvojCBPauCNh1sgH
    FK3C3q1K3ExB45mO

    • Flip the robot over.

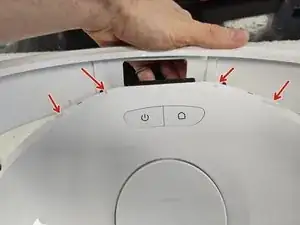

    • Remove the bumper by tilting it forwards to get it off the little tabs on the front.

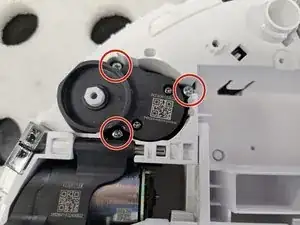

  7. CtdPuxiD4FffAbg4

    • Unscrew the screws using a PH2 screwdriver.

    • Simply lift it out.

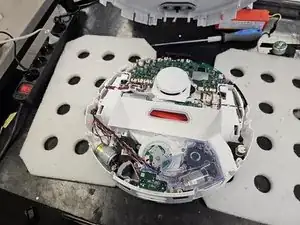

  8. WYFiHyQXVgnUI4Vk
    WYFiHyQXVgnUI4Vk
    KZmkfvP1lk4X6DqC
    rIUlKSTHMhaCUT1F

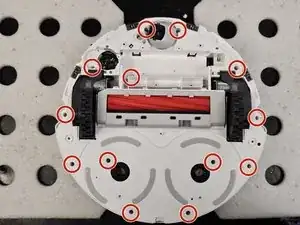

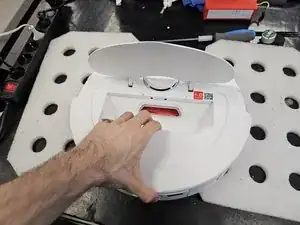

    • Remove the remaining screws that hold the chassis together. Use a PH2 screwdriver.

    • Flip it over, then pull it apart.

  9. 1Alt2eMLVHXn5PKN

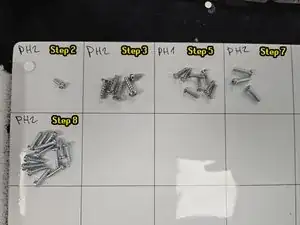

    • Screws organised by type and steps used in.

    • Use this during reassembly if needed.

Author

DegenFixer

Member since: 18/09/24

4249 Reputation

One comment

Hello,

I am contacting you regarding a persistent issue with my Roborock QRevo

For some time now, my device has been regularly showing "error 13"

When the robot connects to the charging station, it stays there for about 3-5 minutes before disconnecting on its own. It then attempts to reconnect several times, entering and exiting the station repeatedly, until an error 13 appears

Each time it docks, the device indicates "charging in progress," but after a few minutes, the problem reoccurs.

Actions taken so far:

I have thoroughly cleaned the charging contacts on both the robot and the station using a specific electrical contact cleaner.

I measured the voltage of the charging station terminals: it reads 4.15 volts.

I measured the battery voltage of the robot: it reads 14.7 volts.

After a full night of complete shutdown, the robot attempted to charge again, but only gained 1 to 2% battery after 10 minutes before disconnecting

Could you please advise on the next steps to resolve this problem?
